Please Contact Us to Order to offer competitive prices and delivery time for iSMA CONTROLLI - BD297 Differential Pressure Switch number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Germany Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
| BRAND | iSMA CONTROLLI |

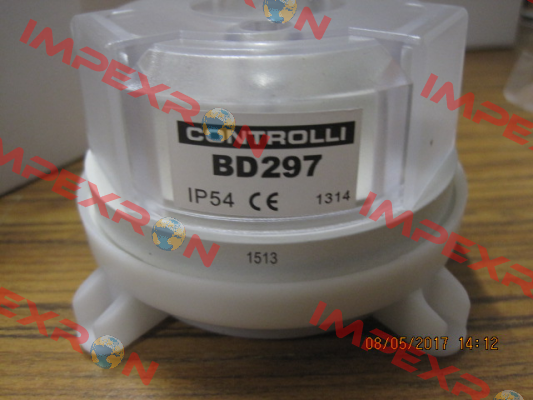

| Product | BD297 |
| Description | Differential Pressure Switch |
| Internal code | IMP2023626 |
| Weight | 0.35 |

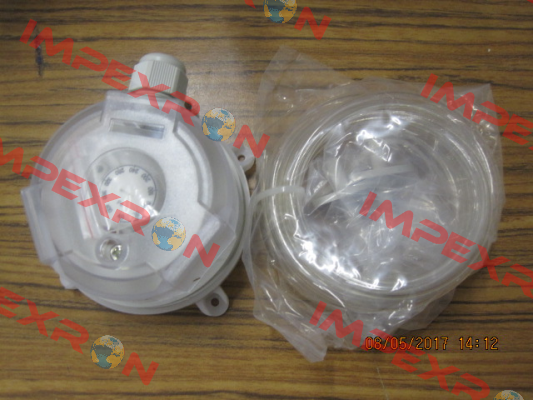

| Technical specification | Pressure max: 10kPa Pressure range: 40...400Pa Differential pressure: 10Pa Allowed fluids: air and non-aggressive gas Electrical ratings: max 1,5A resistive @ 250V max 0.4A inductive @ 250V Protection degree: IP54 (with cover) IP00 (without cover) Mounting: wall mounting - equipped with PVC flexible pipe for connection (length 1,5m) Material: - housing: ABS - duct connectors: ABS - membrane: Silicone - cable sleeve: PVC Weight: 0,15Kg (0,35Kg with flexible pipe) Connections: - electrical connections: 3 blades 6,3x0,8mm - housing sheath: 4,5 ÷ 9mm - pressure connections: Ø 6mm, male Room temperature limits: - operating: -20T85°C - storage: -40T85°C Voltage against earth: 250Vac max. |
